Application Areas： ≤400mm
Crawler type medium crushing and fine crushing mobile station is a new type of mobile crushing equipment developed by our engineers in combination with the advantages of the current more advanced and stable mobile crushing station. It adopts the combination of multiple models for operation and integrates the process equipment such as material receiving, crushing and conveying. Through the optimization of the process flow, it has strong crushing performance in rock crushing, aggregate production and open-pit mining. In addition, it is equipped with an effective noise absorption system and dust removal system, as well as flexible mobile performance, which can better meet the crushing and treatment of construction waste between urban areas, It is one of the ideal products for users to purchase construction waste treatment equipment.

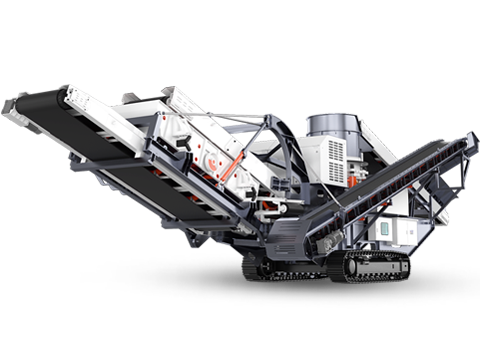

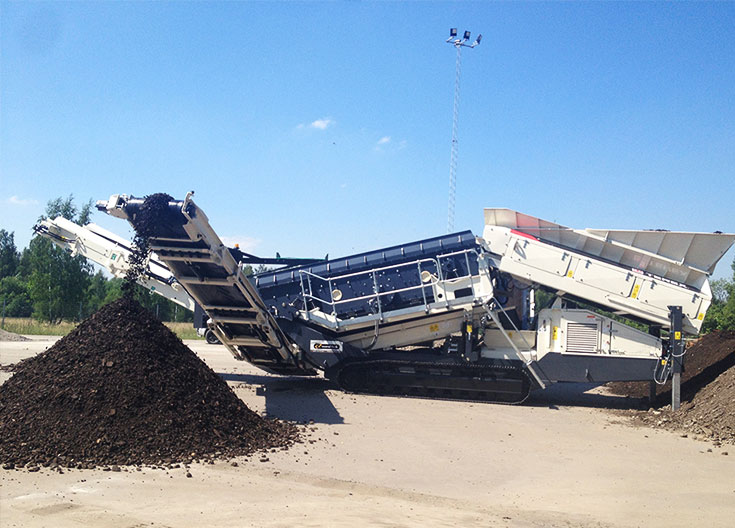

The crawler type mobile crushing station is composed of crawler chassis, frame assembly, main machine and auxiliary equipment, power system and hydraulic electric control system. When moving, power is provided by the power system, and the crawler chassis is driven by the hydraulic and electric control system; During installation, the power system controls and drives the hydraulic cylinder through the hydraulic electric control system to automatically complete the equipment installation; During operation, the power system drives and controls the main machine and auxiliary equipment through the hydraulic and electric control system. The materials enter the main machine mounted on the crawler chassis and frame from the silo for crushing or screening, and are discharged through the integrated belt conveyor.
The crawler type mobile crushing station is composed of crawler chassis, frame assembly, main machine and auxiliary equipment, power system and hydraulic electric control system. When moving, power is provided by the power system, and the crawler chassis is driven by the hydraulic and electric control system; During installation, the power system controls and drives the hydraulic cylinder through the hydraulic electric control system to automatically complete the equipment installation; During operation, the power system drives and controls the main machine and auxiliary equipment through the hydraulic and electric control system. The materials enter the main machine mounted on the crawler chassis and frame from the silo for crushing or screening, and are discharged through the integrated belt conveyor.
| Technical Data//Model | Y3S1848 | Y3S1860 | Y3S2160 | |
| Transportation size (mm) | 10100×2800×4350 | 11100×2820×4350 | 11100×3100×4350 | |
| Weight(t) | 16 | 18 | 19 | |
| Tire Configuration | Dualaxial | Dualaxial | Dualaxial | |
| Capacity(T/h) | 50-250 | 60-300 | 80-400 | |
| Belt Conveyor Under Vibrating Screen | B800×7M | B800×8M | B1000×8M | |
| Vibrating Screen | 3YZS1848 | 3YZS1860 | 3YZS2160 | |
| Electric control | standard | control box + control panel | control box + control panel | control box + control panel |
| Optional | Control box + LCD | Control box + LCD | Control box + LCD | |
| Hydraulic leg | standard | 4 | 4 | 4 |
| Optional | 2 | 2 | 2 | |
| Hydraulic cyclinder | standard | 0 | 0 | 0 |
| optional | 2 | 2 | 2 | |
| Genset (optional) (Kw) | 120 | 120 | 120 | |
