Application Areas： ≤35-360mm

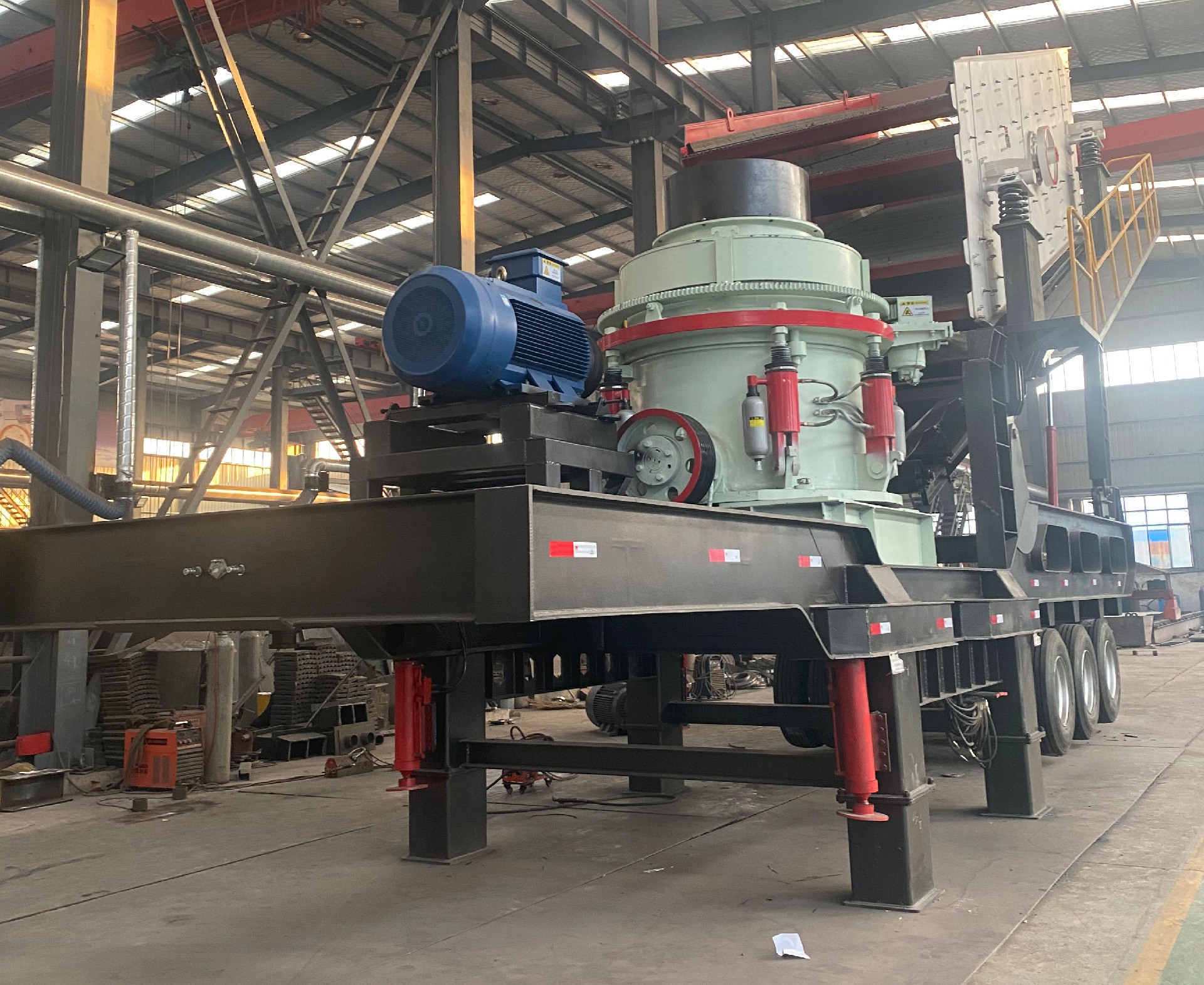

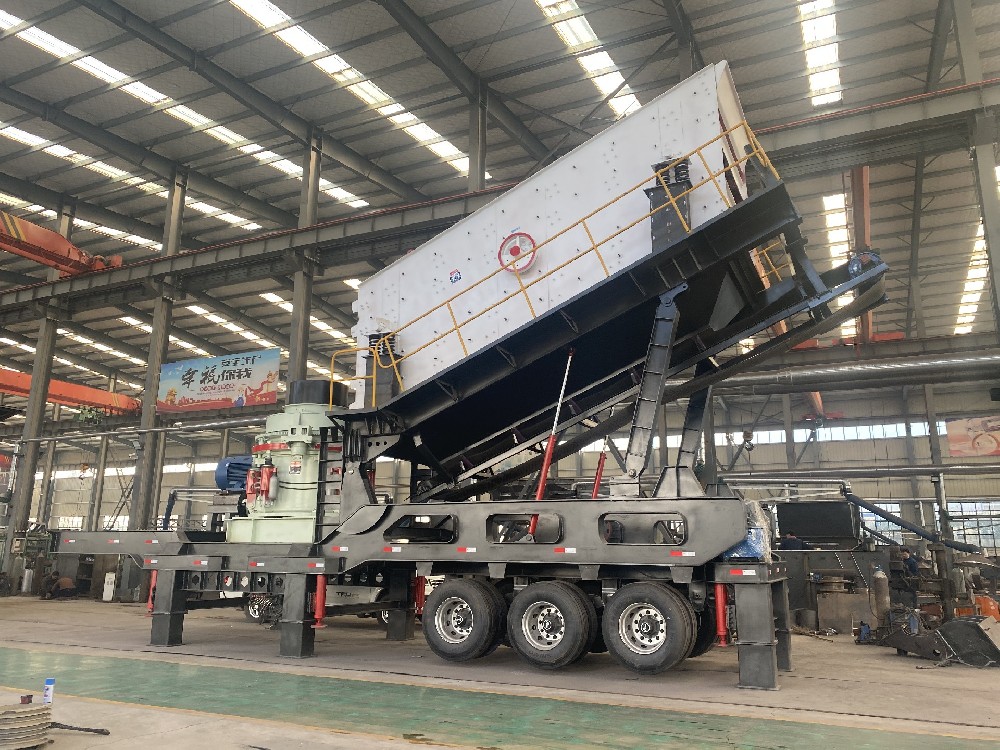

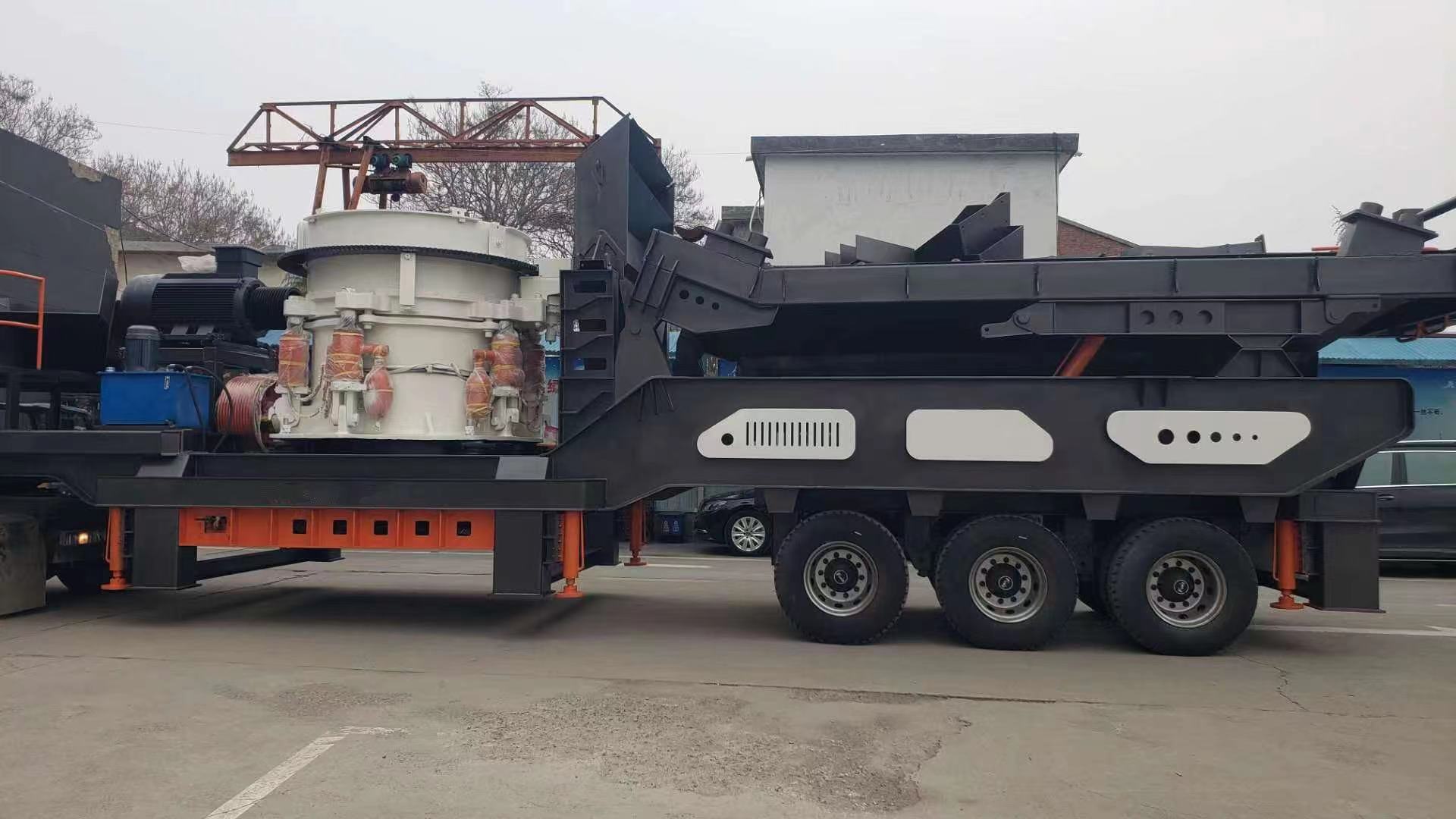

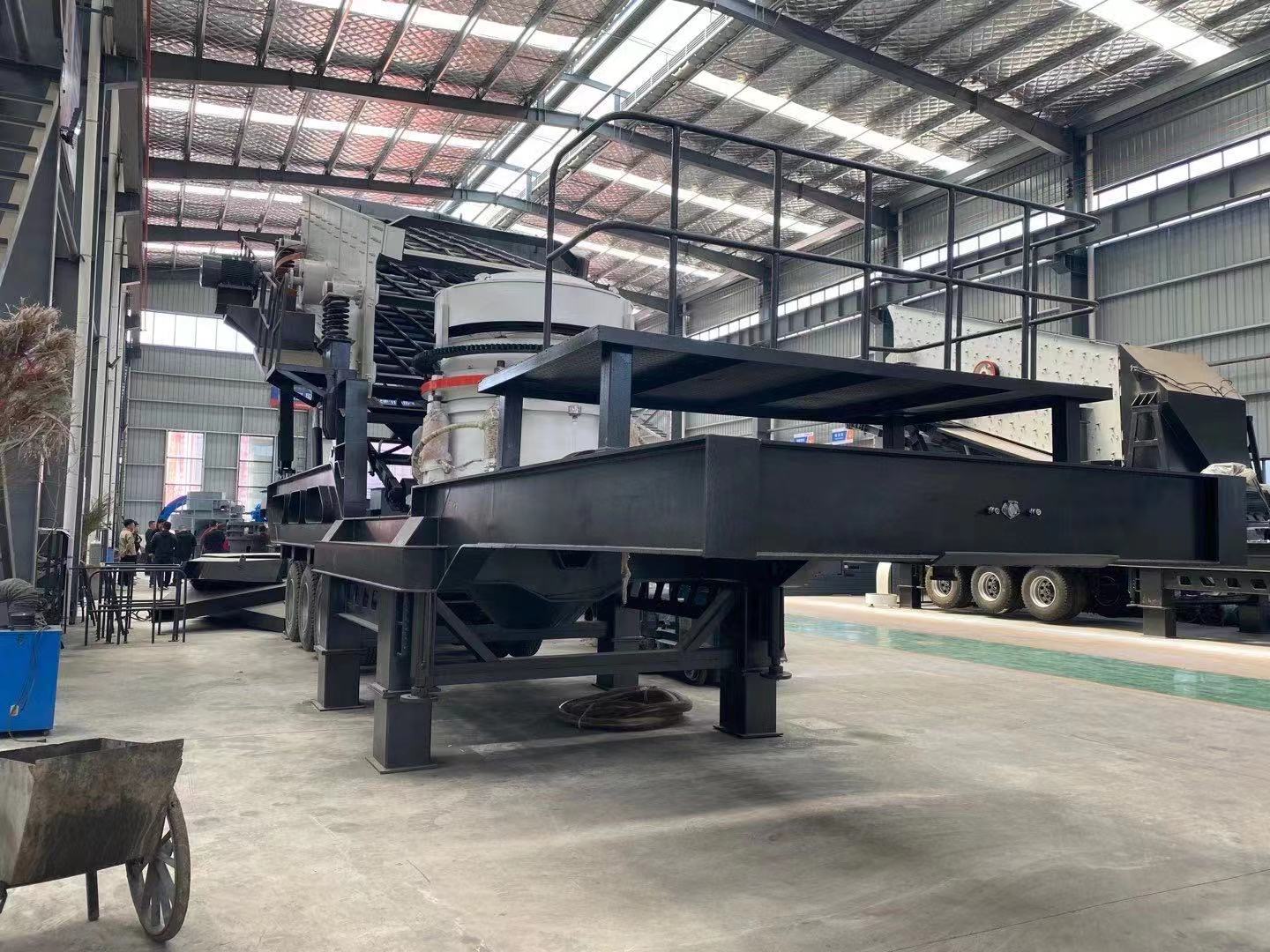

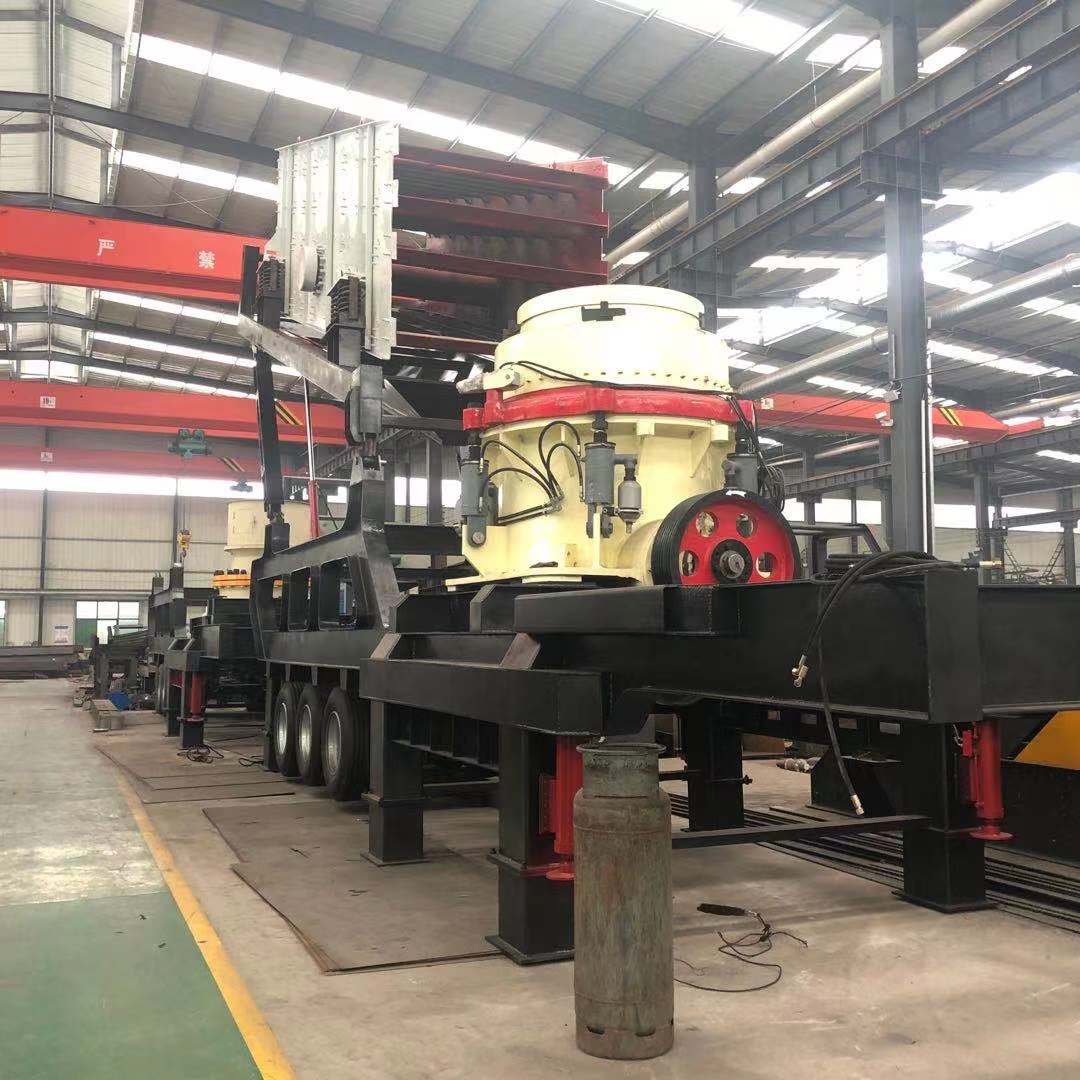

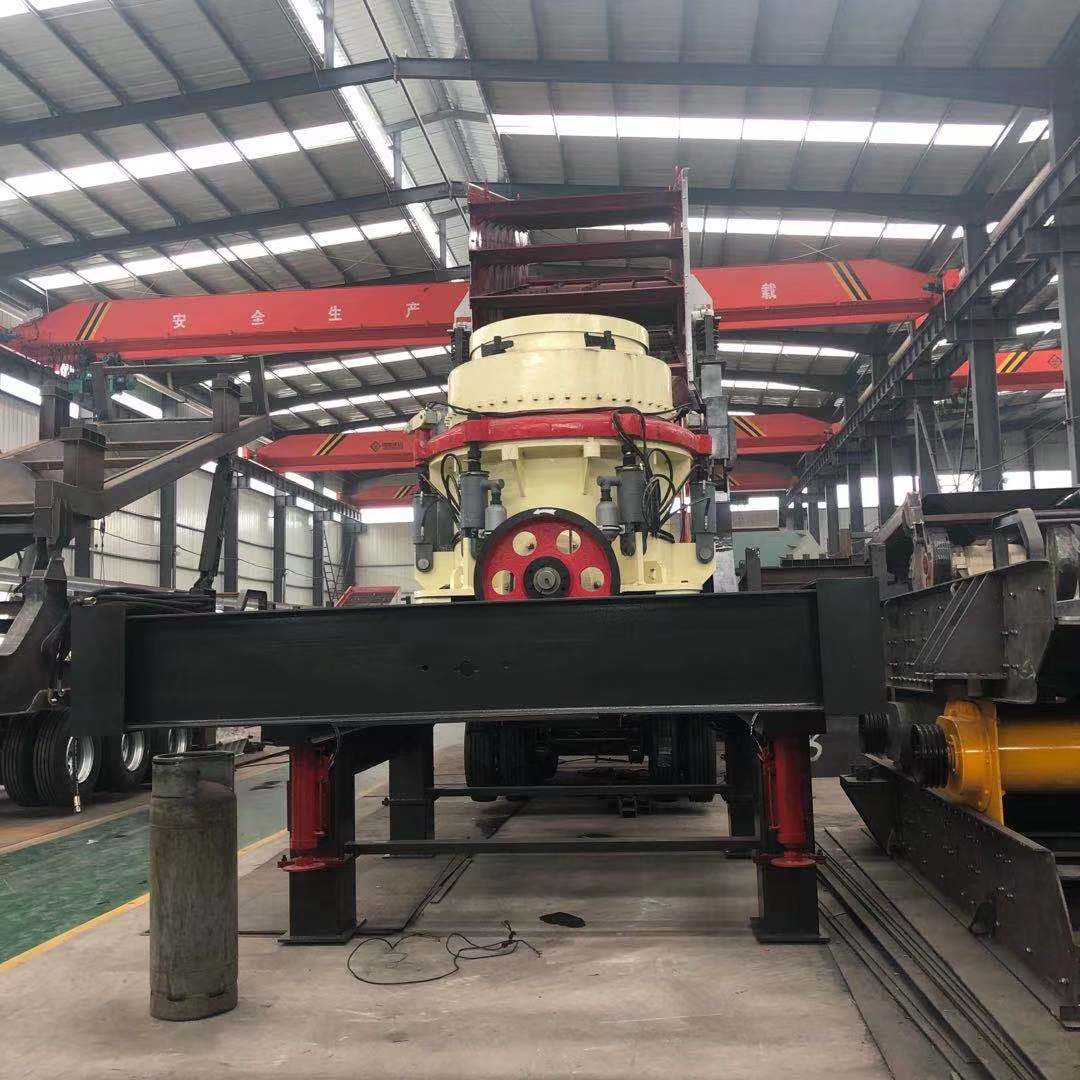

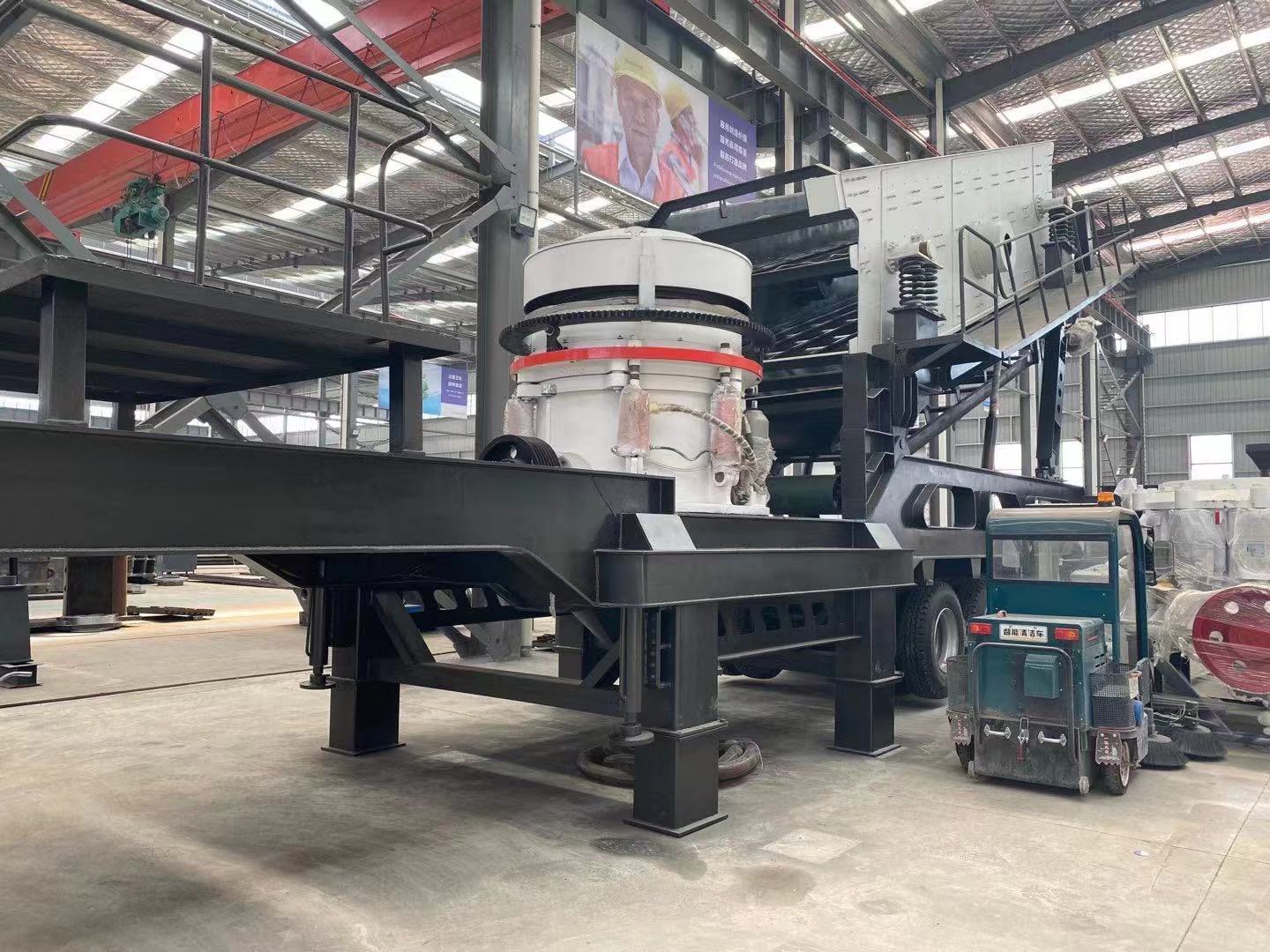

Cone mobile crushing station is reliable in performance, convenient in maintenance, equipped with high-performance cone crusher, high crushing efficiency, multi-function, excellent crushing product quality, and light and reasonable structural design. Reliable and stable quality assurance, meet the requirements of crushing and screening of coarse, medium and fine materials, and establish a good quality reputation for the majority of new and old customers at home and abroad.
The materials are evenly transported to the cone crusher by the feeder. After the initial crushing, the cone crusher forms a closed-circuit system through the circular vibrating screen to realize the circular crushing of the materials. The finished materials are output by the conveyor for continuous crushing operation. The moving crushing station of tire cone crushing + vibrating screen can remove the circular vibrating screen according to the actual production needs, and realize the primary crushing of materials directly. It is used with other crushing equipment, which is convenient and flexible.
The materials are evenly transported to the cone crusher by the feeder. After the initial crushing, the cone crusher forms a closed-circuit system through the circular vibrating screen to realize the circular crushing of the materials. The finished materials are output by the conveyor for continuous crushing operation. The moving crushing station of tire cone crushing + vibrating screen can remove the circular vibrating screen according to the actual production needs, and realize the primary crushing of materials directly. It is used with other crushing equipment, which is convenient and flexible.
Standard model | Supporting equipment | Supporting equipment | External dimension (mm) | ||
model | Feed size (mm) | Processing capacity (T / h) | |||
S-CS75 | 3YZK1848 | CS75 | ≤160 | 59-163 | 12600×2800×4400 |
S-CS110 | 3YZK1860 | CS110 | ≤178 | 100-200 | 13800×3000×4400 |
S-CS160 | 3YZK2160 | CS160 | ≤188 | 132-253 | 13800×3000×4400 |
S-CS220 | 3YZK2160 | CS220 | ≤230 | 215-330 | 14500×3000×4500 |
S-HQ300 | 3YZK1848 | SHQ300 | ≤160 | 65-168 | 12600×2800×4400 |
S-HQ400 | 3YZK1860 | SHQ400 | ≤230 | 105-205 | 13800×3000×4400 |
S-HQ500 | 3YZK2160 | SHQ500 | ≤240 | 180-290 | 14500x3000x4600 |
S-H420 | 3YZK1848 | SH420 | ≤240 | 85-170 | 12600×2900×4400 |
S-H430 | 3YZK1860 | SH430 | ≤360 | 120-345 | 13800×3000×4500 |
S-H440 | 3YZK2160 | SH450 | ≤450 | 255-605 | 14800×3200×4600 |
S-HP100 | 3YZK1860 | SHP100 | ≤140 | 75-140 | 13800×2900×4300 |
S-HP200 | 3YZK2160 | SHP200 | ≤185 | 145-250 | 14200×3000×4500 |
S-HP300 | 3YZK2160 | SHP300 | ≤230 | 220-440 | 16500×3200×4600 |
S-PF1214 | 3YZK1860 | PF1214 | ≤300 | 100-200 | 14500×2900×4500 |
S-PF1315 | 3YZK2160 | PF1315 | ≤350 | 130-280 | 15200×3000×4500 |
S-PF1320 | 3YZK2460 | PF1320 | ≤500 | 180-400 | 15200×3000×4500 |
S-S1860 | 3YZK1860 | ≤400 | 65-586 | 10500×2700×4200 | |
S-S2160 | 3YZK2160 | ≤400 | 81-720 | 10500×3000×4500 | |
S-S2460 | 3YZK2460 | ≤400 | 100-810 | 10500×3200×4500 | |
