Application Areas：

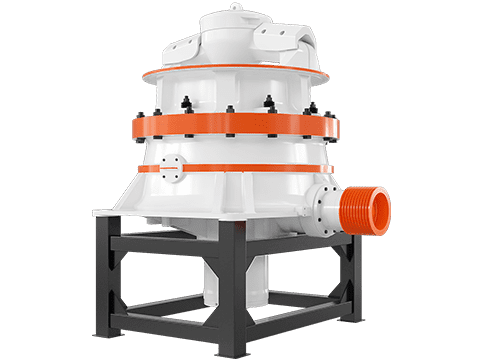

The HST series hydraulic cone crusher is a high efficiency cone crusher designed by introducing American technology and combining the metal nature on the world market. It is widely used in metal mine, metallurgical, chemistry, construction, cement, sand and stone production industry. It applies to the primary and secondary crushing of various of mines and rocks, the Protodyakonov hardness of which is f=5-16, such as iron ore, nonferrous ore, granite, limestone, quartzite ore, sandstone, pebble and so on.

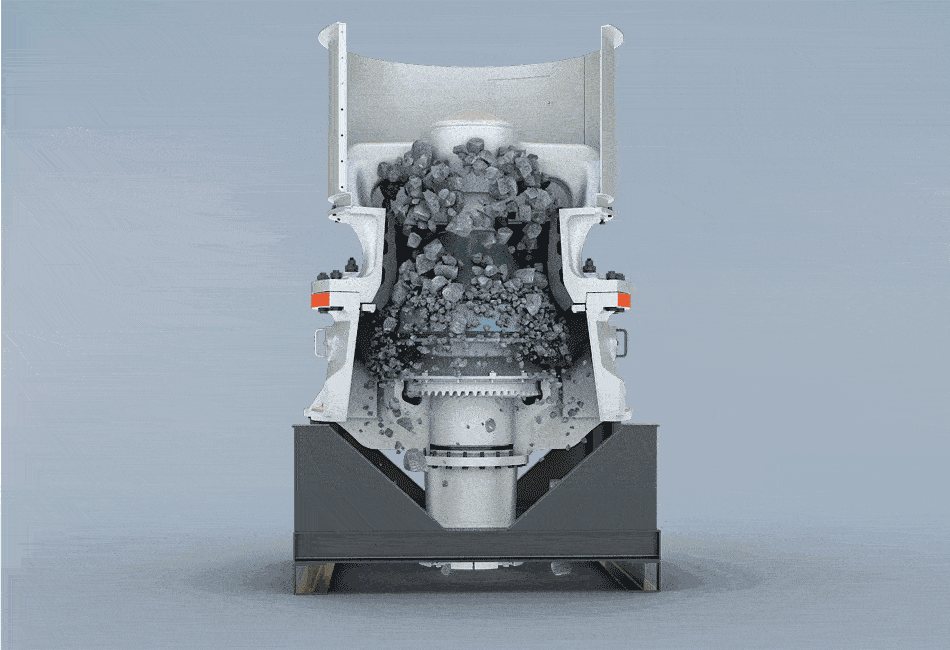

HST series hydraulic cone crusher is mainly composed of six parts: upper frame body, lower frame body, movable cone, eccentric sleeve, transmission part and hydraulic cylinder. The horizontal shaft driven by the motor makes eccentric sleeve rotating via the gear, then the eccentric sleeve drives the movable cone rotating to realize continuous stone extrusion.
HST series hydraulic cone crusher is mainly composed of six parts: upper frame body, lower frame body, movable cone, eccentric sleeve, transmission part and hydraulic cylinder. The horizontal shaft driven by the motor makes eccentric sleeve rotating via the gear, then the eccentric sleeve drives the movable cone rotating to realize continuous stone extrusion.
Model | Cavity | Maximum feed size(mm) | CSS min-max(mm) | Capacity(tph) | Power KW(HP) | Dimension (L×W×H) (mm) | Weight (t) |
HST100 | S1(Extra Coarse) | 240 | 22-38 | 85-170 | 90(125) | 1535×1275×2710 | 9.6 |
S2(Medium Coarse) | 200 | 19-32 | 70-130 | ||||
HST160 | S1(Extra Coarse) | 360 | 25-54 | 120-345 | 132(175) | 2045×1635×3040 | 15.5 |
S2(Medium Coarse) | 300 | 22-48 | 105-305 | ||||
S3(Coarse) | 235 | 19-48 | 90-275 | ||||
HST250 | S1(Extra Coarse) | 450 | 35-54 | 255-605 | 220(300) | 2675×2550×3940 | 28 |
S2(Medium Coarse) | 400 | 29-51 | 215-515 | ||||
S3(Coarse) | 300 | 25-51 | 190-490 | ||||
HST315 | S1(Extra Coarse) | 560 | 41-76 | 335-1050 | 315(400) | 3110×2945×4480 | 43.5 |
S2(Medium Coarse) | 500 | 38-70 | 305-895 | ||||
Model | Cavity | Maximum feed size(mm) | CSS min-max(mm) | Capacity(tph) | Power KW(HP) | Dimension (L×W×H) (mm) | Weight (t) |
HST100 | H1(Fine) | 135 | 10-32 | 45-130 | 90(125) | 1540×1280×2300 | 7.5 |
H2(Medium Fine) | 65 | 8-19 | 35-80 | ||||
H3(Extra Fine) | 38 | 4-16 | 27-60 | ||||
HST160 | H1(Fine) | 185 | 13-38 | 66-210 | 132(175) | 2000×1550×2600 | 10 |
H2(Medium Fine) | 90 | 10-32 | 65-165 | ||||
H3(Extra Fine) | 50 | 6-25 | 48-105 | ||||
HST250 | H1(Fine) | 215 | 16-44 | 110-395 | 220(300) | 2315×1830×2940 | 19.5 |
H2(Medium Fine) | 110 | 13-38 | 115-340 | ||||
H3(Extra Fine) | 70 | 8-32 | 90-255 | ||||
HST315 | H1(Fine) | 275 | 16-51 | 170-665 | 315(400) | 2740×2200×3590 | 28.5 |
H2(Medium Fine) | 135 | 16-38 | 190-505 | ||||
H3(Extra Fine) | 65 | 13-22 | 205-320 | ||||
HST560 | H1(Fine) | 300 | 22-70 | 448-1331 | 560(750) | 3300×2600×4463 | 51 |
H2(Medium Fine) | 155 | 19-70 | 400-1098 | ||||
H3(Extra Fine) | 80 | 10-44 | 280-669 | ||||
HST750 | H1(Fine) | 270 | 25-70 | 480-2500 | 630(850) | 3800×3100×5305 | 80 |
H2(Medium Fine) | 195 | 22-70 | 552-1115 | ||||
H3(Extra Fine) | 85 | 10-51 | 364-790 |
