Application Areas： ≤52-360mm

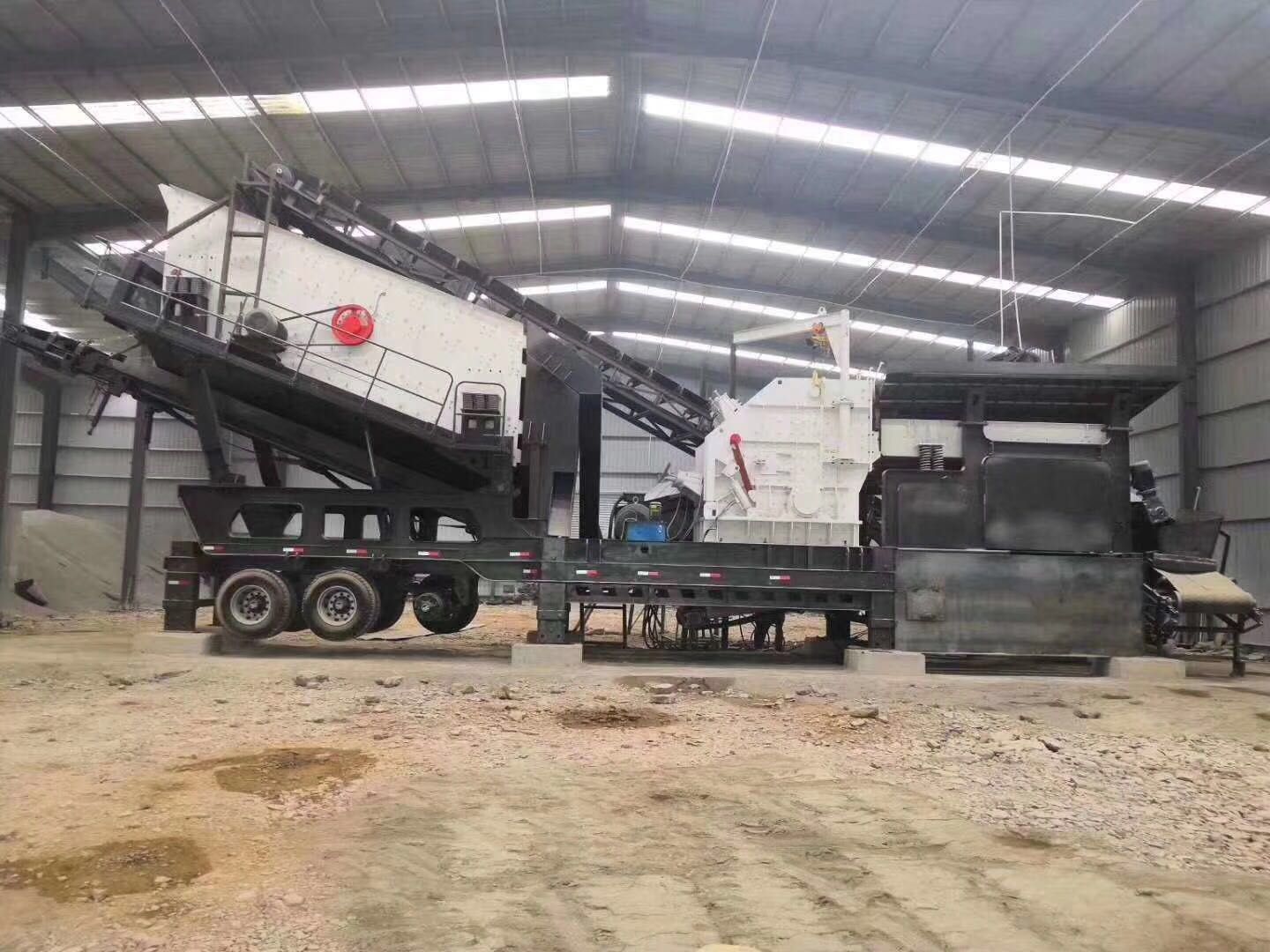

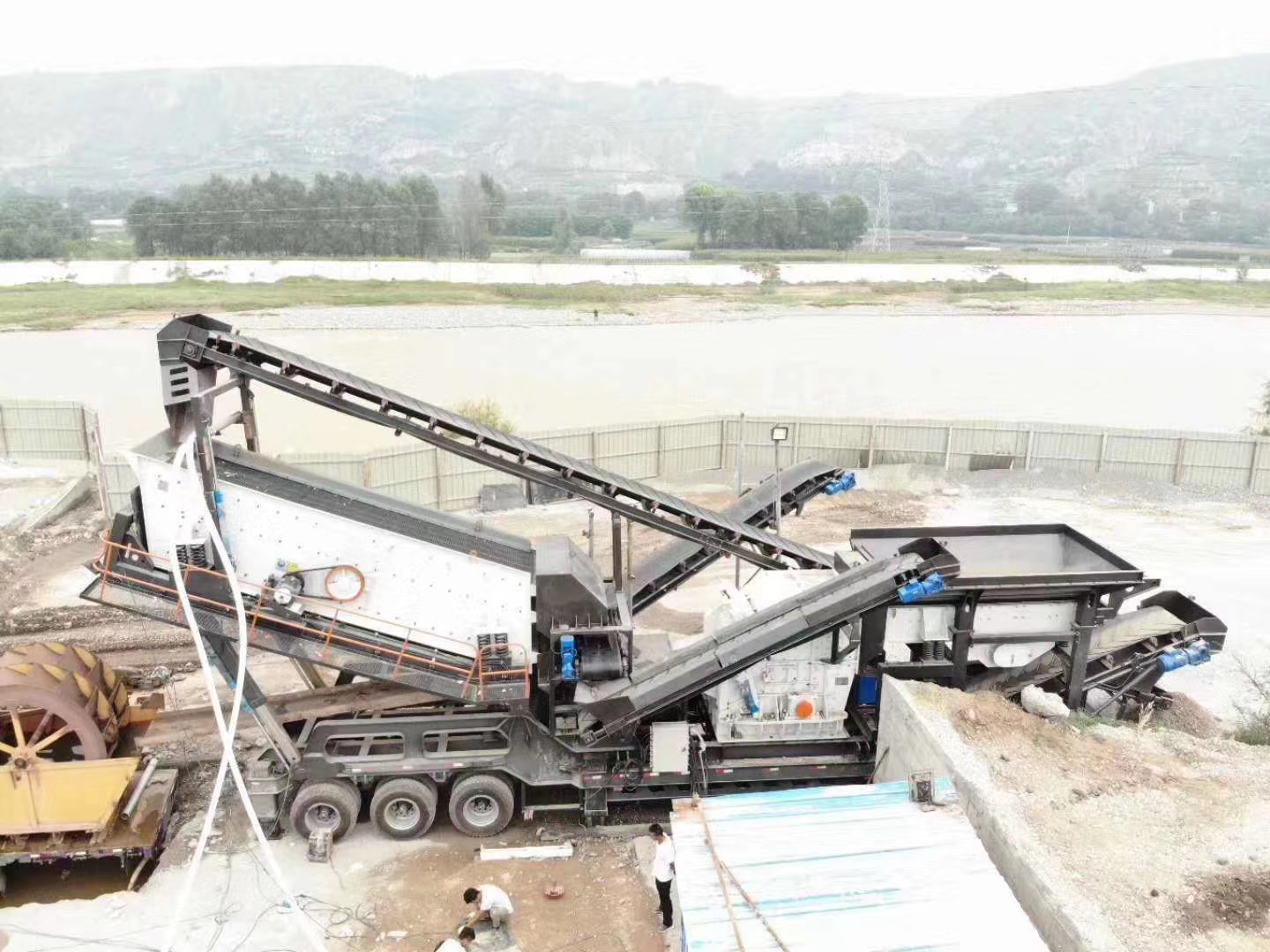

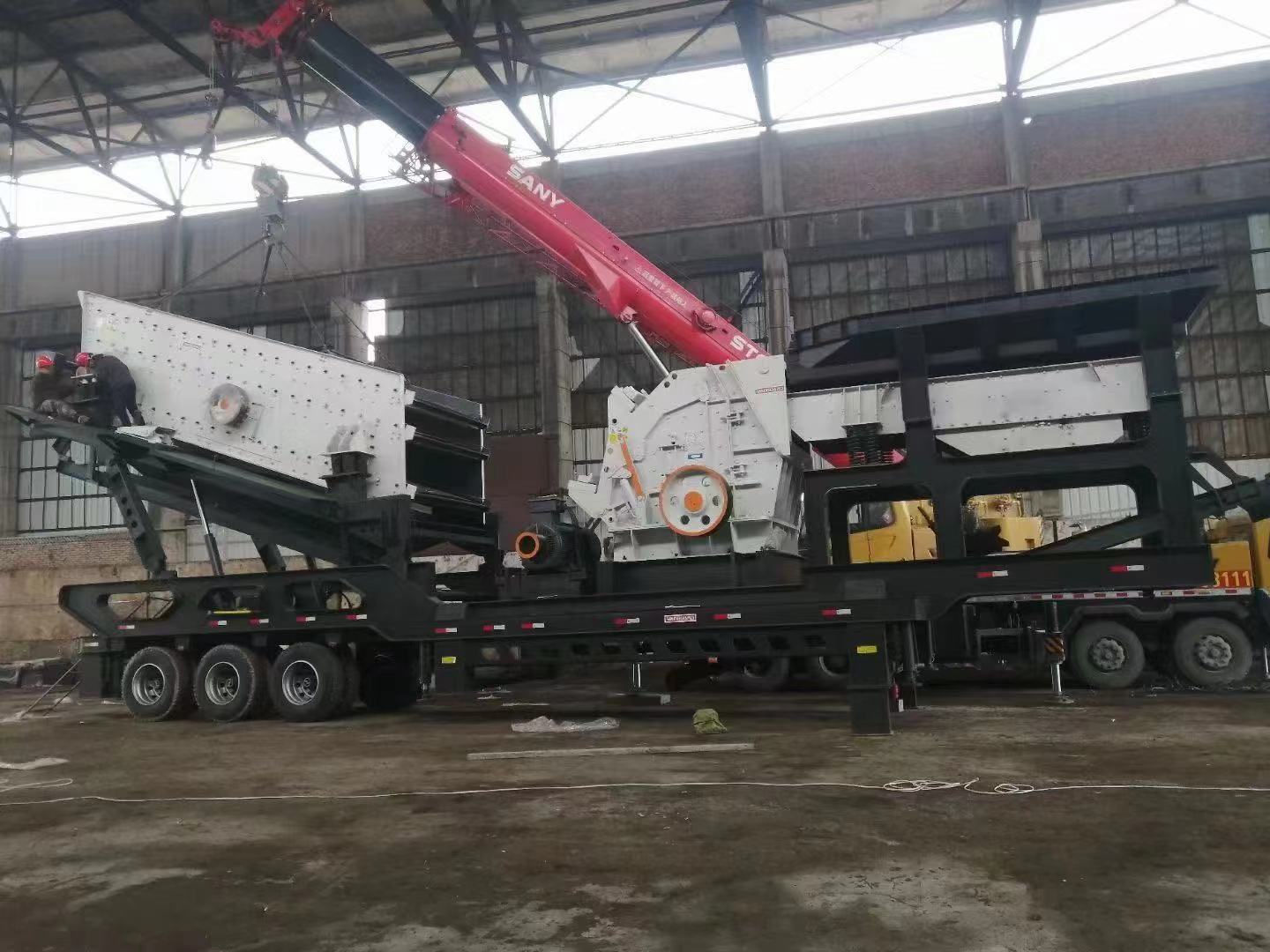

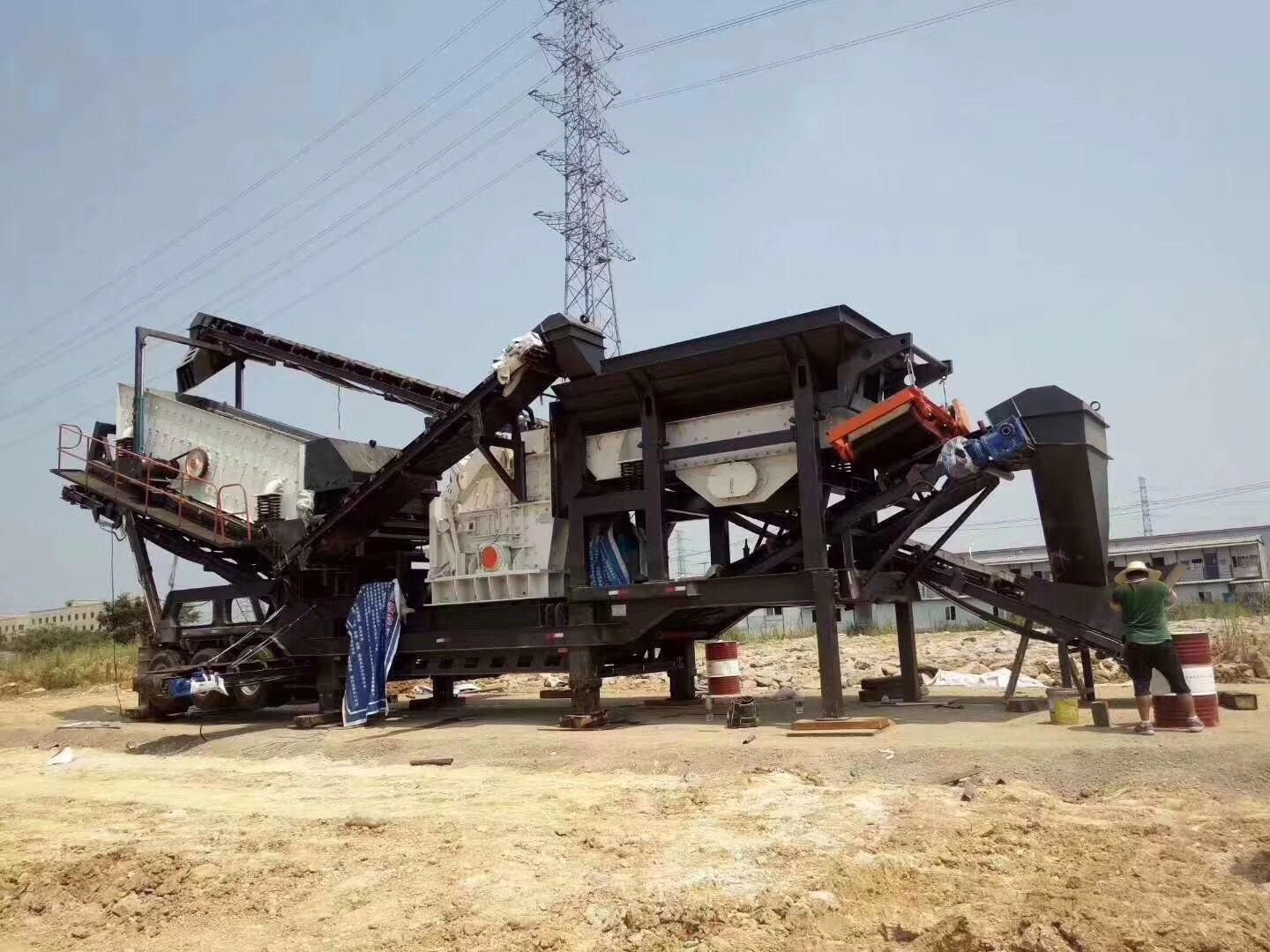

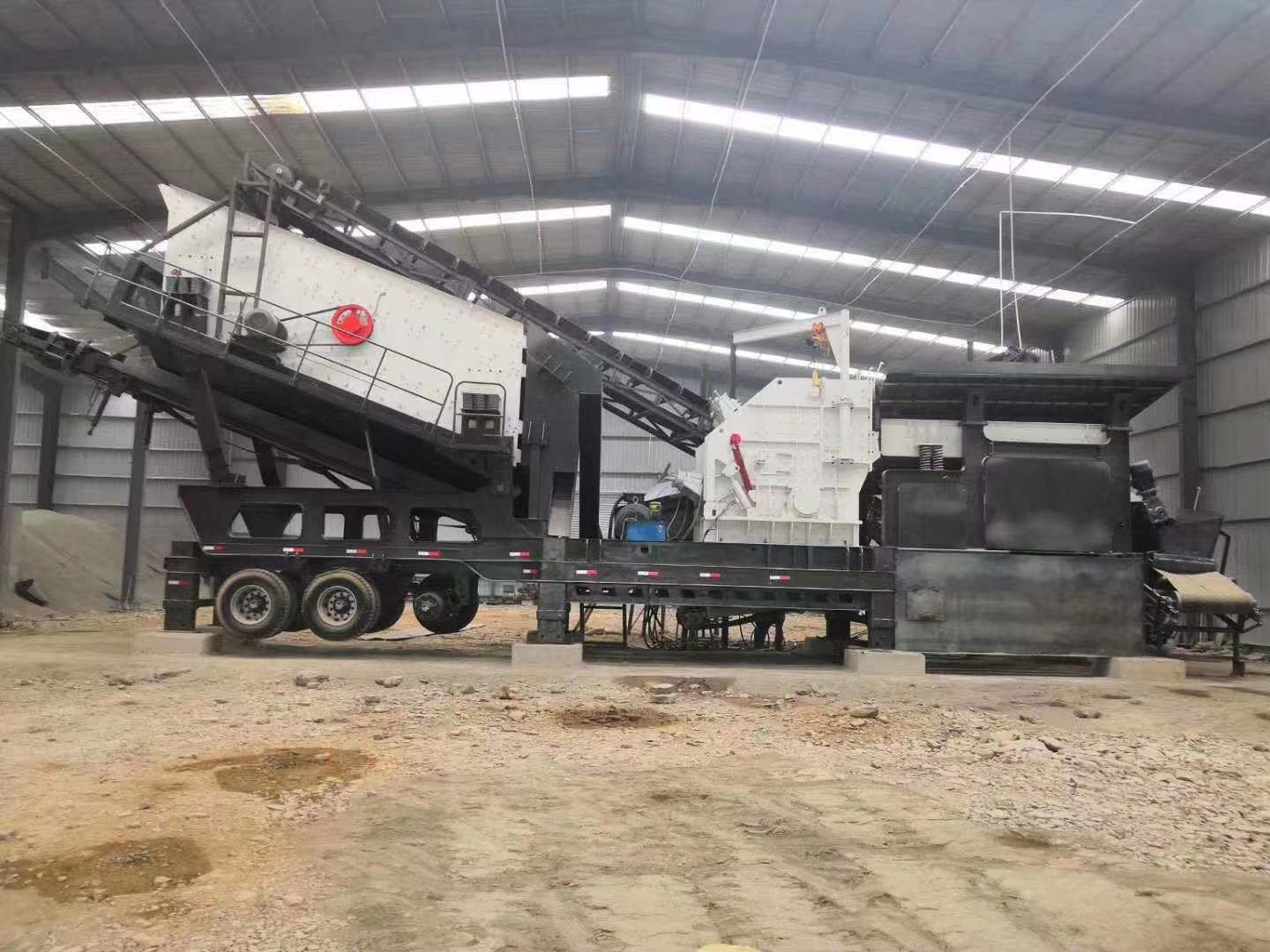

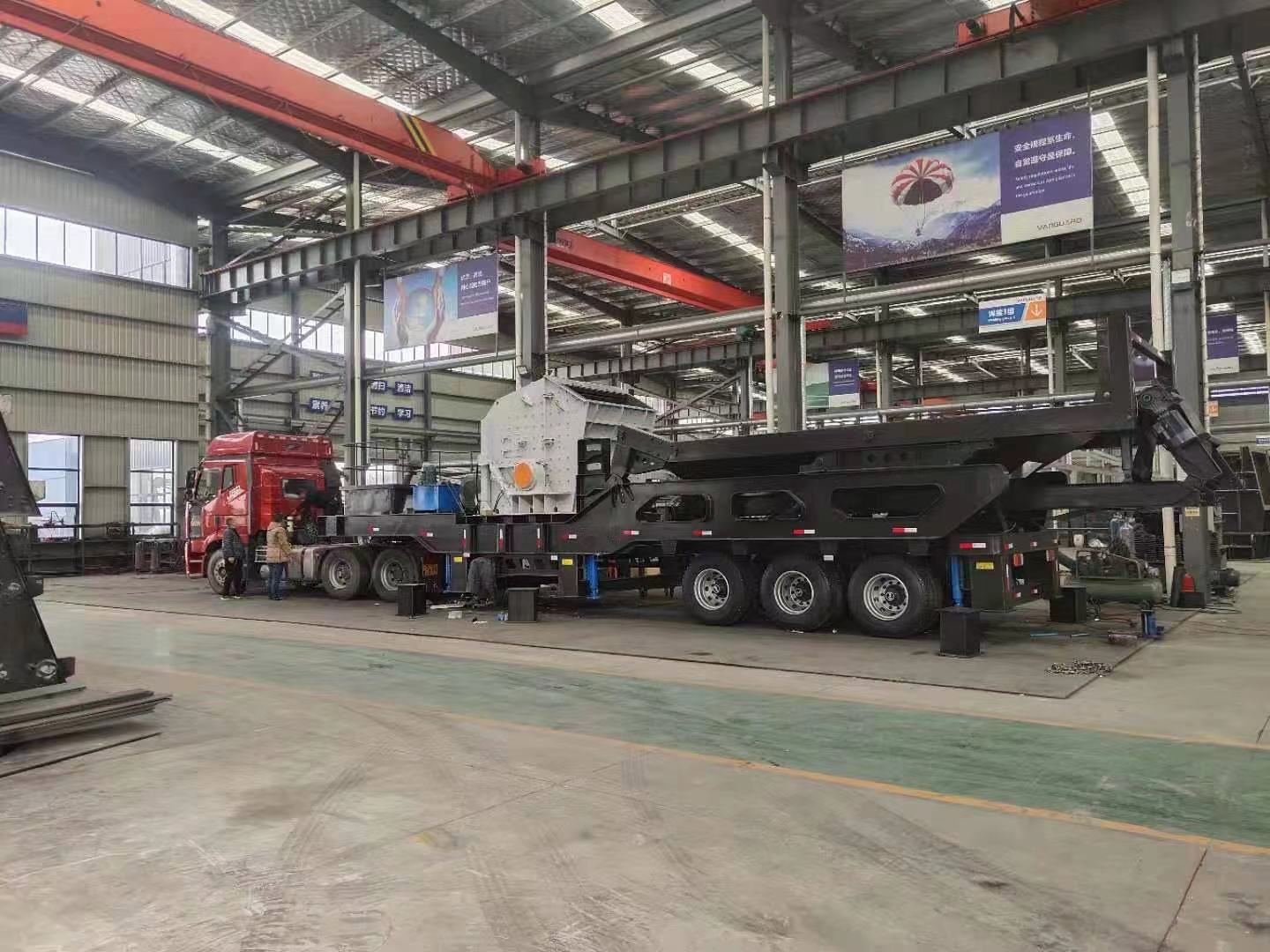

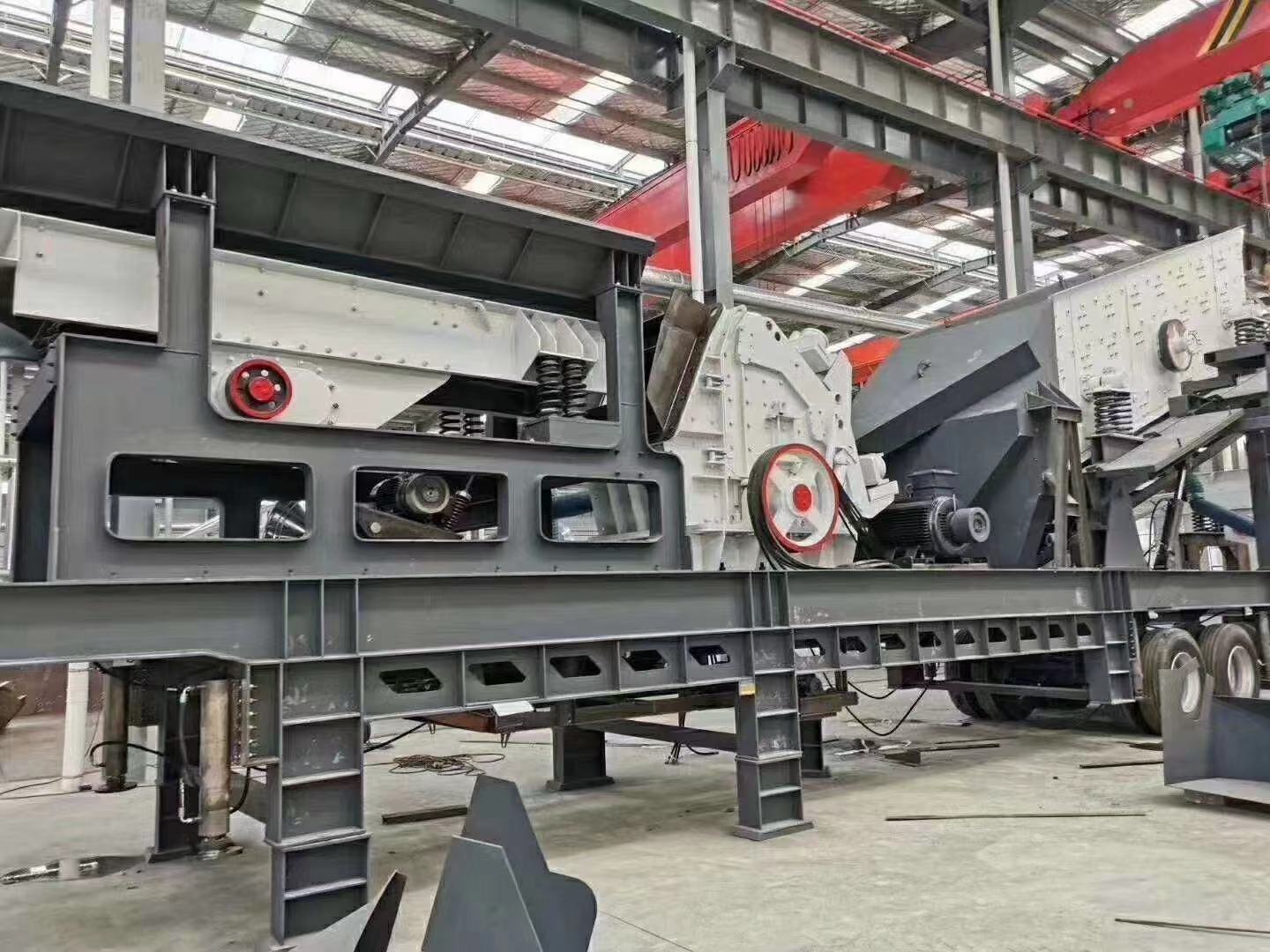

The mobile crushing station is composed of feeder, impact crusher, belt conveyor and other integrated mobile crushing equipment. It adopts the latest manufacturing technology, selects high-quality high chromium plate hammer and wear-resistant impact lining plate, which has a large crushing ratio. In addition, the impact crusher has the characteristics of high-quality grain shape, which makes the mobile crusher set have a wider range of use. It is especially suitable for small crushing site construction waste treatment, construction waste crushing and so on.
The materials are evenly transported to the jaw crusher by the feeder, and the materials after the initial breaking of the jaw crusher are sent to the impact crusher for secondary crushing through the conveyor. The crushed materials are screened by the vibrating screen, and the materials meeting the crushing requirements are exported by the conveyor. The materials that do not meet the requirements are broken again by the impact crusher. The whole production line of crawler jaw crusher + impact crusher mobile station is connected The circular vibrating screen forms a closed-circuit system to realize the circular crushing of materials. The finished materials are output by the conveyor for continuous crushing operation.
The materials are evenly transported to the jaw crusher by the feeder, and the materials after the initial breaking of the jaw crusher are sent to the impact crusher for secondary crushing through the conveyor. The crushed materials are screened by the vibrating screen, and the materials meeting the crushing requirements are exported by the conveyor. The materials that do not meet the requirements are broken again by the impact crusher. The whole production line of crawler jaw crusher + impact crusher mobile station is connected The circular vibrating screen forms a closed-circuit system to realize the circular crushing of materials. The finished materials are output by the conveyor for continuous crushing operation.
SMC Impact crusher | SMC1010PFS | SMC1210PFS | SMC1214PFS | |
Transport size | ||||
Length(mm) | 10800 | 12200 | 12500 | |
Width(mm) | 2480 | 2743 | 2900 | |
Height(mm) | 4170 | 4200 | 4200 | |
Alex weight(kg) | 15900 | 17200 | 22100 | |
King pin weight(kg) | 11300 | 14300 | 17500 | |
Impact crusher | ||||
Model | PF1010 | PF1210 | PF1214 | |
Feed opening(mm) | 400X1080 | 400X1080 | 400X1080 | |
Vibrating screen | Vibrating screen | |||
Model | 4YK1235 | 4YK1545 | 4YK1548 | |
