Application Areas： ＜1700 mm

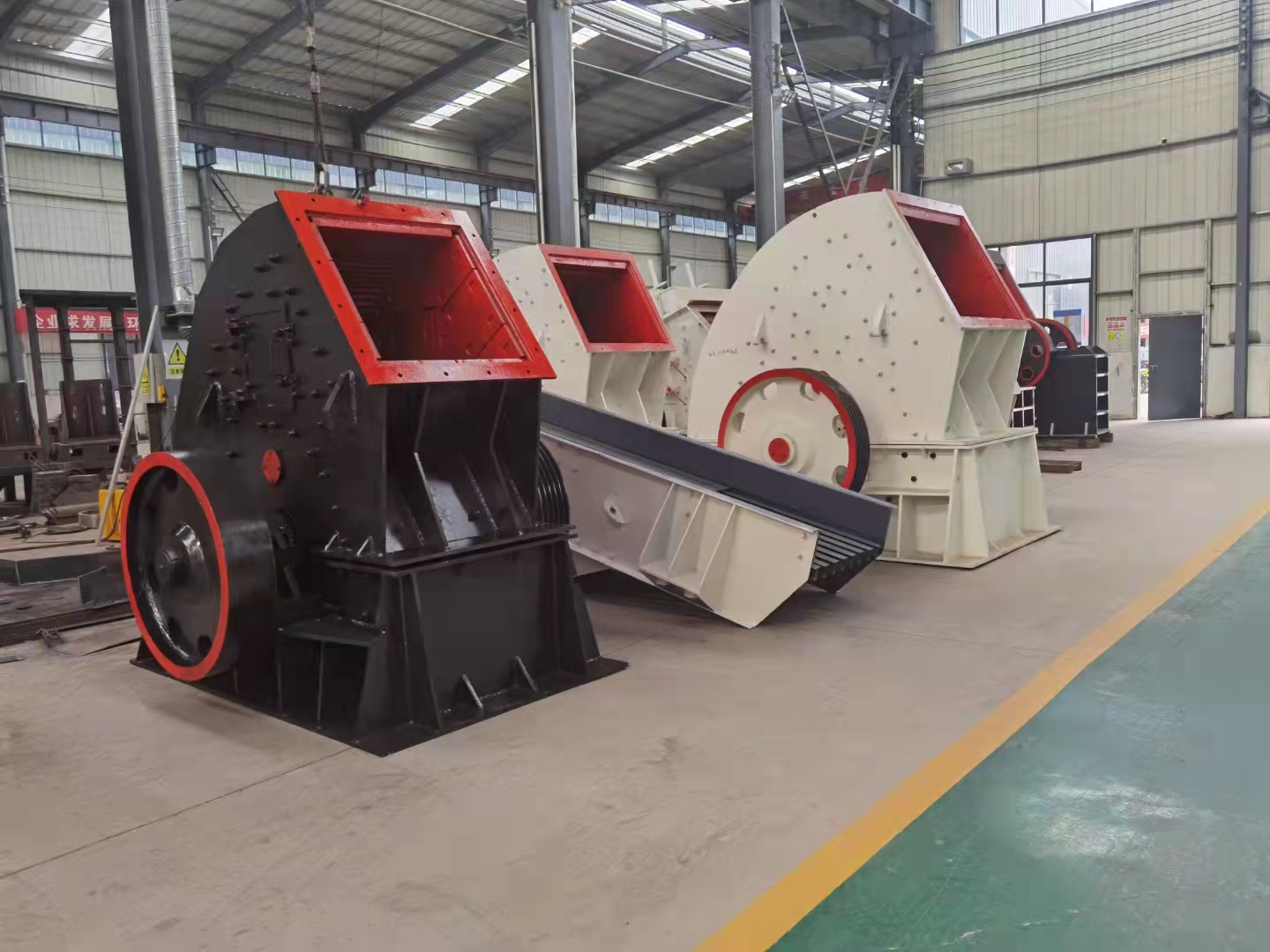

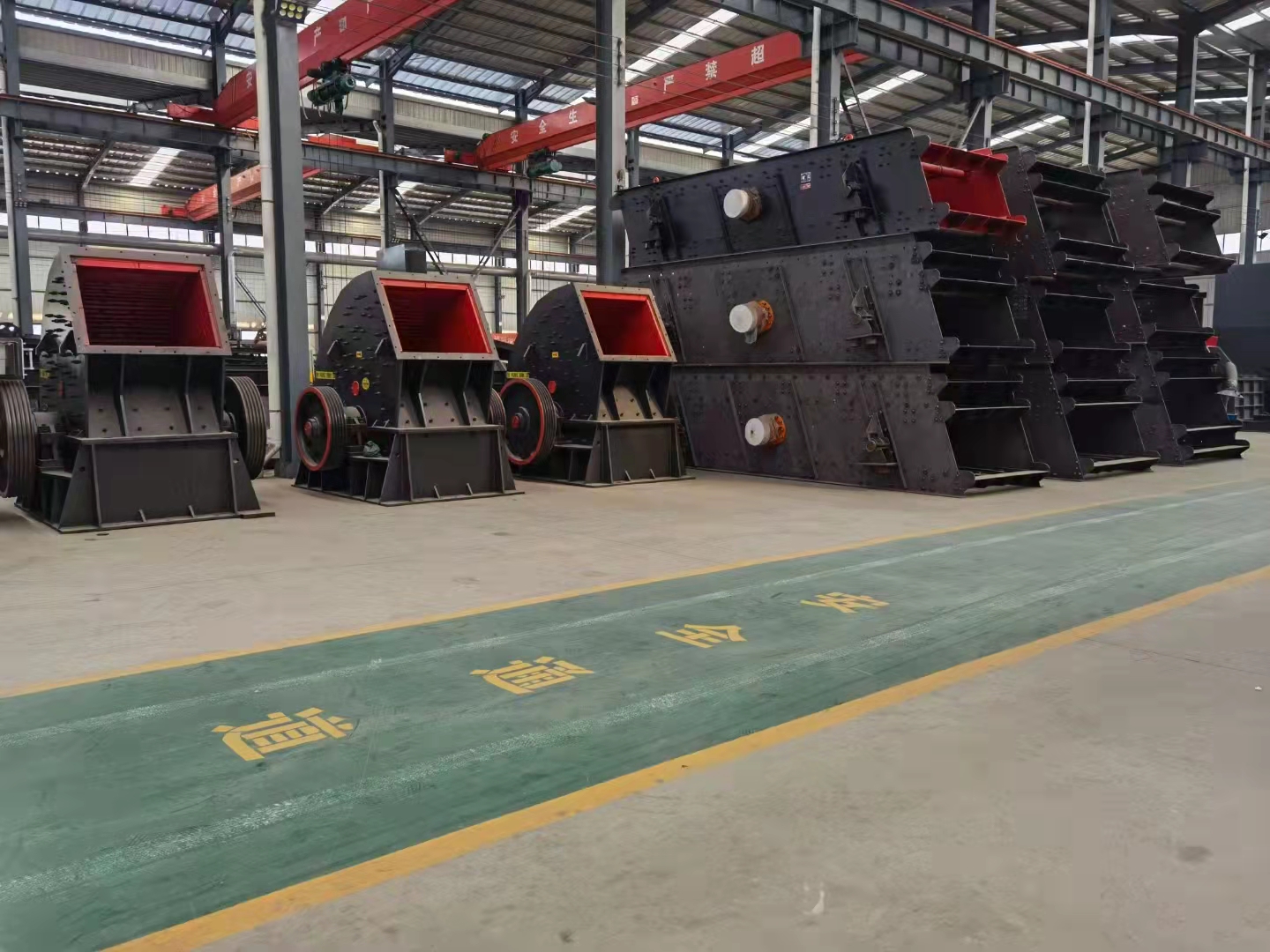

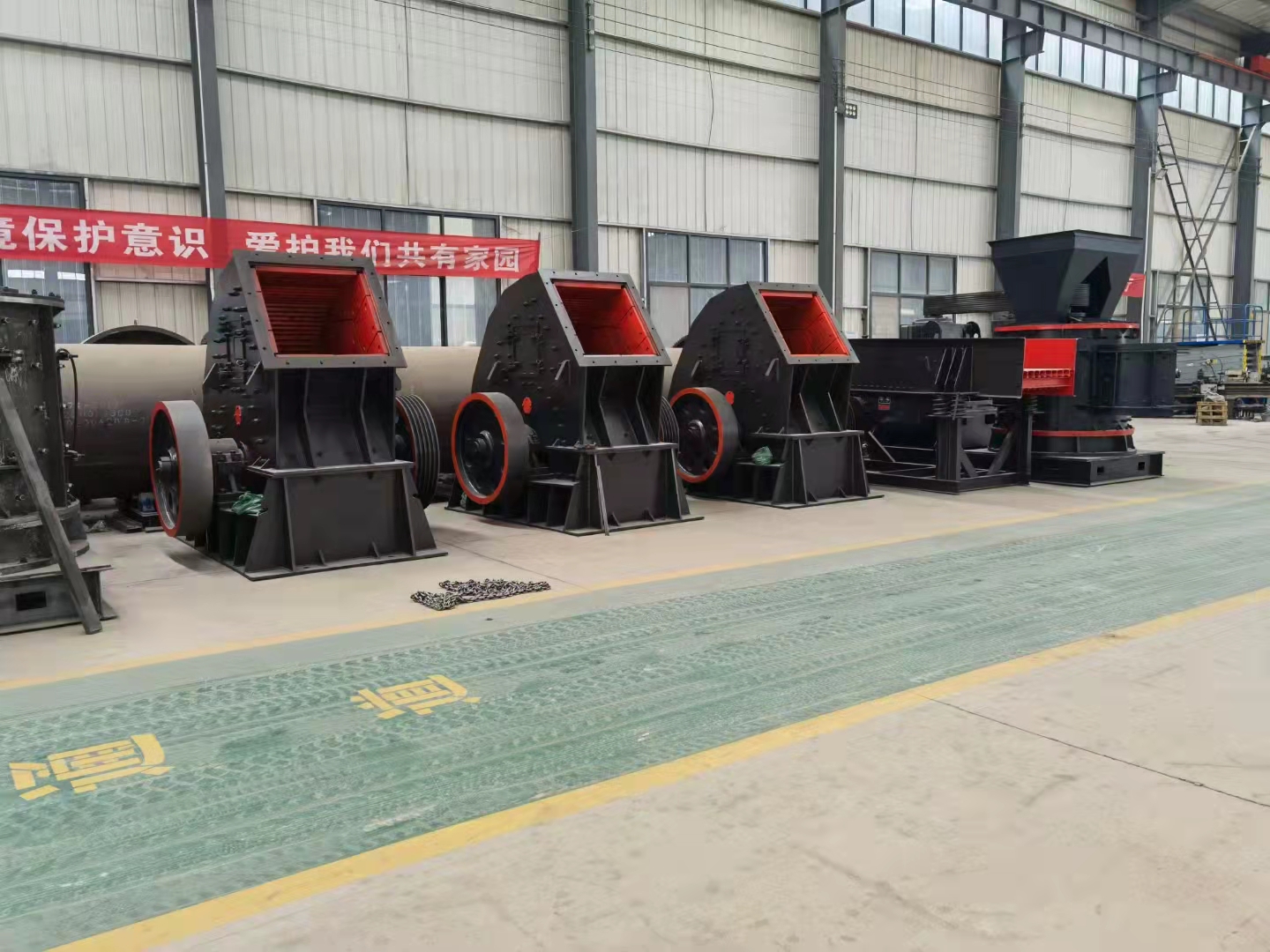

Heavy hammer crusher, also known as hammer crusher, has the advantages of one-time forming, large crushing ratio, high production capacity, uniform product particle size, etc. it is suitable for fine crushing limestone, coal or other brittle materials with medium hardness in metallurgical, building materials, chemical industry, water and electricity and other industrial departments. We are a crushing equipment manufacturer specializing in R & D, design and production of heavy hammer crushers. The price of Hammer Crushers is reasonable, and the product structure is advanced With reliable performance and low energy consumption, it has formed a series of products, which are deeply loved by new and old customers.
The heavy hammer crusher can be formed at one time without secondary crushing and shaping process, which can reduce the cost by about 40%. It has the advantages of large crushing ratio, high output, uniform particle size of finished products, low energy consumption and high environmental protection.
The heavy hammer crusher can be formed at one time without secondary crushing and shaping process, which can reduce the cost by about 40%. It has the advantages of large crushing ratio, high output, uniform particle size of finished products, low energy consumption and high environmental protection.
| model | Specifications | feed sizemm) | feed port size(mm) | throughput(t/h) | motor power（kw) | Overall dimension(mm) |
| PCZ0706 | 700x570 | 618x510 | ≤400 | 75 | 50-70 | 1950x1340x1480 |
| PCZ0808 | 800x750 | 780x610 | ≤500 | 132 | 80-100 | 2280x1790x1670 |
| PCZ0910 | 900x1000 | 1070x750 | ≤600 | 150-200 | (110kw-4)*2 | 2600x2200x2050 |
| PCZ1012 | 1000x1180 | 1255x810 | ≤200 | 250-300 | (132kw-4)*2 | 2800x2400x2300 |
| PCZ1213 | 1200x1280 | 1350x900 | ≤200 | 300-350 | (160kw-4)*2 | 2970x2625x2580 |
| PCZ1216 | 1270x1490 | 1530x920 | ≤250 | 400-500 | (200kw-4)*2 | 3070x2840x2580 |
| PCZ1220 | 1220x1950 | 2000x920 | ≤250 | 500-700 | (250kw-4)*2 | 3080x2280x2580 |
| PCZ1622 | 1580x2150 | 2290x960 | ≤300 | 600-900 | 630kw-6 | 4095x3495x2960 |
